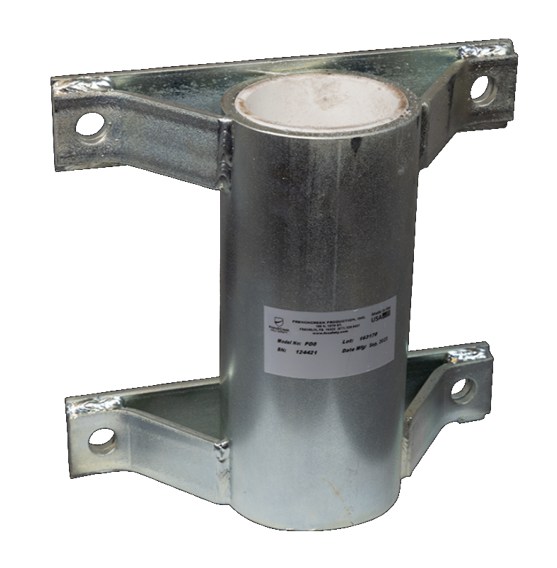

Bolt-on design for existing steel & concrete structures
Ideally suited for recurrent access locations
9″ deep sleeve with PVC insert
User-supplied fasteners required for installation
Portable Davit System is used to raise, lower, and suspend personnel performing routine work duties or to facilitate rescues in confined space applications
Use with Davit Mast Assembly 32086 (sold separately)
Weight Capacity: 450lbs at minimum 2:1 safety factor
Zinc Plated Carbon Steel, Sleeve Insert PVC Pipe
32 lbs
Standards: OSHA 1926.502 and 1910.66 when used in a complete system
