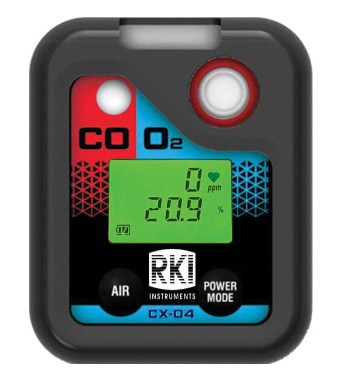

RKI Instruments 73-0069 CX-04 Series Carbon Monoxide (CO) and Oxygen (O2) Combo Gas Monitor

RKI Instruments 73-0069 CX-04 Series Carbon Monoxide (CO) and Oxygen (O2) Combo Gas Monitor
RKI Instruments 73-0069 CX-04 Series Carbon Monoxide (CO) and Oxygen (O2) Combo Gas Monitor
  • Personal monitoring for CO and O2
  • CO detection range of 0 ~ 300.00 ppm (1 ppm)
  • Co alarm set points of 25 ppm, 50 ppm and 150 ppm
  • O2 Detection range: 0 ~ 40% (0.1%)
  • O2 Alarm set points of 19.5 %, 18.0% and 25.0 %
  • Gas sampling: Diffusion
  • Detection principle: Electrochemical
  • Response time: T90 in 10 seconds
  • CO Accuracy: < 300 ppm ± 5 % of reading, > 300 ppm ± 20 % of reading
  • O2 Accuracy: < 25% ± 0.5 % > 25% ± 3.0 % Pocket size 2.1”(W) x 2.6”(H) x 0.9”(D), 2.8 ounces
  • Designed to operate for many years with field replaceable sensors and filters
  • Can be operated continuously for up to 3000 hours on (2) AAA size alkaline batteries
  • Low battery alarm
  • Equipped with visual, audible and vibration alarms as standard
  • Replacement sensors are inexpensive, easily field replaceable, and are interchangeable with other popular RKI instruments like the GX-3R, GX-3R Pro and GasWatch 3
  • Sensors have a life expectancy of over 3 years
  • Impact, dust, and water resistant with an IP-67 ingress protection rating
  • Safe for use in hazardous locations, classified as intrinsically safe ATEX/IECEx and by QPS to U.S. and Canadian standards for Class I, Division 1, Groups A, B, C, and D atmospheres
  • Digital LCD, gas name & concentration, auto backlighting during alarm, operation icon, battery icon
  • Includes:
    • Rubber boot
    • Datalogging software

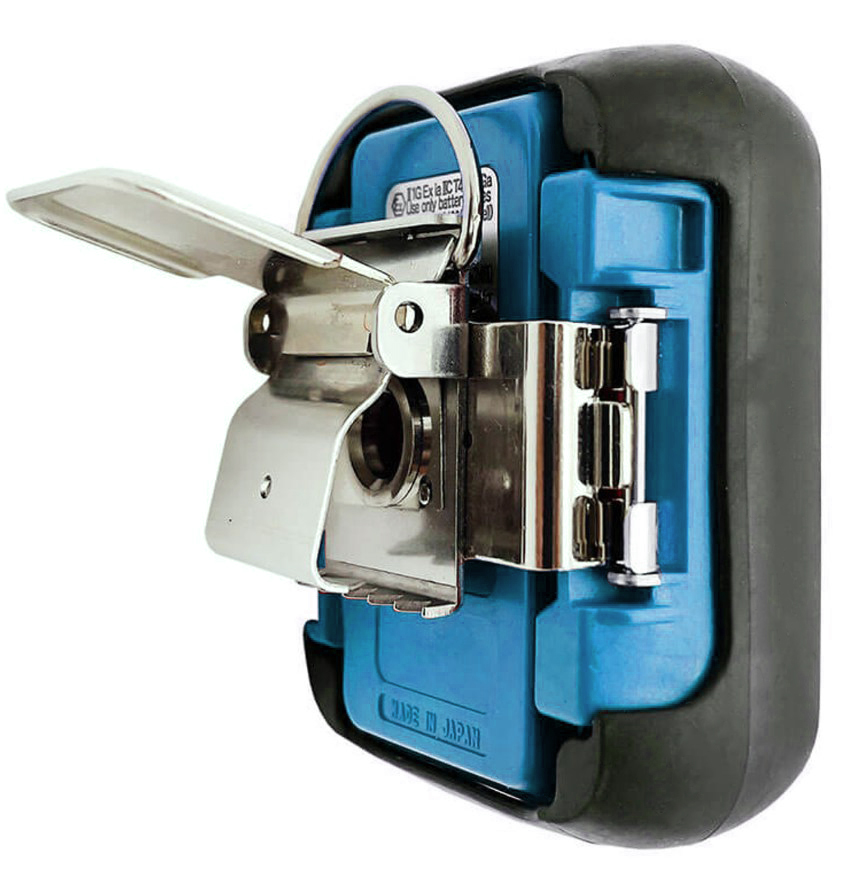

    • Alligator clip
    • Alkaline batteries (2 AAA)
  • Manual backlight for LCD (automatically lit during alarm), Peak hold, STEL & TWA
  • 3 year warranty
  • Applications:
    • Hazardous material
    • Mining
    • Refineries / petrochemical
    • Water / wastewater treatment
    • Pharmaceuticals
    • Utilities
    • Chemical plants
    • Fire services
  • Use with replacement CO and O2 combo sensor RKESR-X1DP-CX
  • Use with AAA batteries 35324
